Casting Parts
Ferrite Grey Castings
  • Ferrite Grey CastingsFerrite Grey Castings

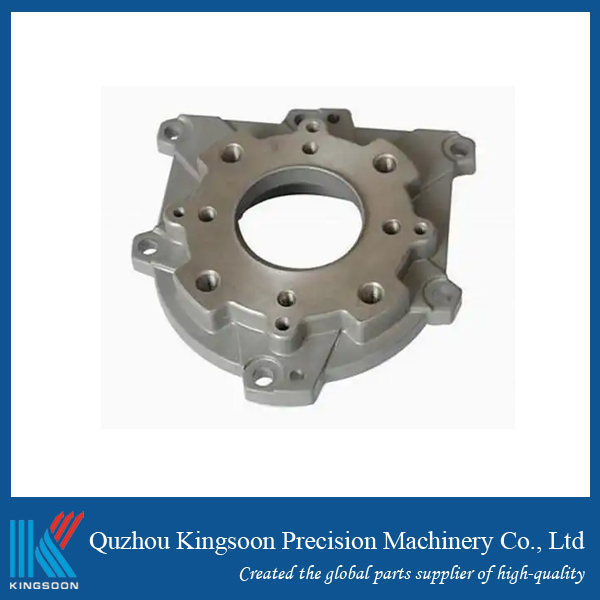

Ferrite Grey Castings

Kingsoon is a well-known Ferrite Grey Castings Company in China. We are equipped to handle all your gray iron casting needs. From design and casting to machining, coating, and assembly. We work with a variety of industries. Including automotive, agricultural, machinery building, electronics, irrigation, ventilation, architecture, construction, and transportation. We are also capable of producing custom grey iron castings to meet your needs.

Ferrite Grey Castings are suitable for unimportant castings with small loads and no special requirements for friction and wear, such as protective covers, covers, oil pans, handwheels, brackets, base plates, hammers, small handles, etc.


Whether you need assistance with the design process or have already designed your part, Kingston is committed to delivering your cast iron parts on time and on budget.


Ferrite Grey Castings Company Machine Capability


Kingsoon specializes in solid and workable grey iron castings. We have our own processing facility. This allows us to machine the castings after they are finished.

It is recommended that you provide us with drawings of your castings and finished products. We will ensure that your castings meet your exact specifications. Our engineering team will follow the machining drawings. Our in-house machining capabilities allow us to achieve additional cost savings. This is achieved by reducing the need for outsourcing processing services.


Common Grey Iron Grades and Chemical Content

Gray cast iron is a type of cast iron known for its excellent workability and excellent damping performance. It is widely used in various industries due to its strength and durability. Gray cast iron is available in several grades. Each has its own unique chemical composition and properties. Below is a list of our casting raw materials.

Gray Iron Wall Thickness/mm C Si Mn P≤ S≤
HT150 <30 3.3-3.5 2.0-2.4 0.5-0.8 0.2 0.12
HT150 30-50 3.2-3.5 1.9-2.3 0.5-0.8 0.2 0.12
HT150 >50 3.2-3.5 1.8-2.2 0.6-0.9 0.2 0.12
HT200 <30 3.2-3.5 1.6-2.0 0.7-0.9 0.15 0.12
HT200 30-50 3.1-3.4 1.5-1.8 0.8-1.0 0.15 0.12
HT200 >50 3.0-3.3 1.4-1.6 0.8-1.0 0.15 0.12
HT250 <30 3.0-3.3 1.4-1.7 0.8-1.0 0.15 0.12
HT250 30-50 2.9-3.2 1.3-1.6 0.9-1.1 0.15 0.12
HT250 >50 2.8-3.1 1.2-1.5 1.0-1.2 0.15 0.12


Why Choose Us?


Kingsoon is one of the most renowned grey cast iron companies and suppliers. We can provide the following services:


Material Quality

Our grey cast iron parts are available in a variety of material grades, including ASTM A48, ASTM A159, and SAE J431. We also offer other specialty grades.


Different Sizes

We work with a variety of foundries to ensure that we can provide you with castings in the sizes you need for your project.


Different Capacities

We offer grey cast iron parts in various capacities. These range from prototype castings using 3D printed sand molds to hundreds of thousands of production castings.


Heat Treatment

In most cases, grey cast iron parts are delivered directly to customers as castings. However, for certain purposes, grey cast iron castings can also be heat treated.

Are you looking for a reputable casting manufacturer? Come work with us! Kingsoon is a world-renowned grey cast iron company and manufacturer with decades of experience in the foundry industry. Our experienced engineers and technicians work hard.

Provide your customers with high-quality and reliable castings. We use state-of-the-art equipment and technology. This involves producing custom castings from a variety of metals to suit the needs of each application. Our quality assurance procedures and standards are the highest in the industry.
