Ceramic Parts
Macor Ceramics Parts
  • Macor Ceramics PartsMacor Ceramics Parts

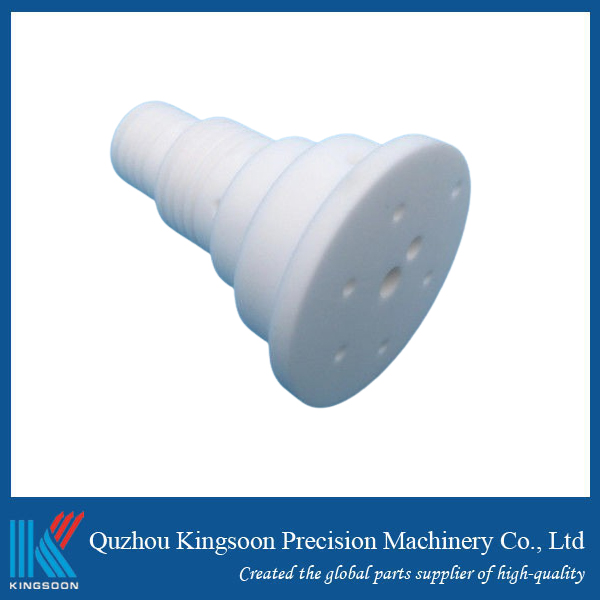

Macor Ceramics Parts

Machinable Macor Ceramics Parts are a high-performance engineering ceramic material composed of two main components, fluorite mica and borosilicate glass, with excellent processing characteristics. MACOR glass ceramic is a machinable ceramic material developed by Corning Inc. in the United States.

It has good processing characteristics and features such as 0 porosity and 0 water absorption. Its gas release rate is 0 in ultra-high vacuum environments. Therefore, many ultra-high vacuum components often require this material to make the corresponding components. MACOR is a high-performance, easy to cut special ceramic that solves the problem of ceramics not being processed with milling cutters, improves processing efficiency, and is often made into various types of precision components.


Macor Ceramics Parts Feature:



A. Corrosion resistance

Because it is made entirely of inorganic materials, it does not age or deform, is very stable to various organic solvents, and has good acid and alkali corrosion resistance.


B. Excellent weather resistance and durability

The acid and alkali resistance of crystallized glass is better than that of granite and marble, even if it is exposed to wind, rain and polluted air, it will not deteriorate, fade or lose strength.


C. High strength and light weight

Ceramic glass is harder than natural stone and is not easily damaged. The thickness of the material matches the construction method, which is in line with the mainstream of modern buildings which are light and strong.




Data sheet

Machinable mica (Macor) Ceramic Properties
Item Unit Typical Values
Physical Properties
Color White
Main Composition Mg3K[AlF2O(SiO3)3],SiO2
Density g/cm3 2.60
Apparent Porosity 0.07%
Water Absorption 0
Normal Temperature Outlet Rate ml/S·cm2 8.8*10-9
Helium Transmission Rate ml/S 1*10-10
Mechanical Properties
Rockwell Hardness(45N) R45N 40
Vickers Hardness (Load 500g) Gpa(Kg/mm2) 11.5(1175)
Flexural Strength (20°C) Mpa >108
Compressive Strength (20°C) Mpa >508
Modulus of Elasticity (25°C) Gpa 65
Impact Toughness KJ/m2 >2.56
Thermal Properties
Thermal Conductivity (25°C) W/m.K 1.71
Thermal Expansion Coefficient 10-7/°C 72
Thermal Shock Resistance T°C 200
Perennial Temperature °C 800
Electric Properties
Dielectric Strength KV/mm >40
Volume Resistivity(25°C) Ω.cm 1.08*1016
Volume Resistivity(200°C) Ω.cm 1.5*1012
Volume Resistivity(500°C) Ω.cm 1.1*109
Dielectric Loss 1-4*10-3
Dielectric Constant Er 6-7


Application industry:


Specific uses: high-temperature insulation components for machining equipment, high-temperature insulation components for electronic equipment.

Crystallized glass is especially suitable for automobiles, military industry, aerospace, precision instruments, medical equipment, electric vacuum devices, electron beam exposure machines, textile machinery, sensors, mass spectrometers and energy spectrometers, etc. For some thin-walled coil skeletons, precision instrument insulation brackets and devices with complex shapes and high precision requirements, crystallized glass is more suitable and can be processed into any shape.





Quality Control

mass production by 100% inspection
